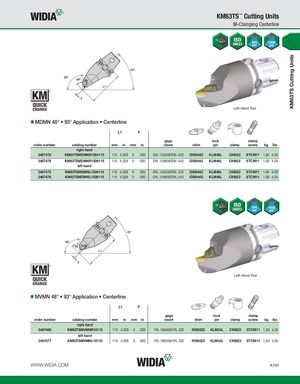

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping Centerline Left-Hand Tool MDMN 48° • 93° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3487478 KM63TSMDMNR1504115 115 4.528 0 .000 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,84 4.05 3487479 KM63TSMDMNR1506115 115 4.528 0 .000 DN..150608/DN..442 IDSN442 KLM46L CKM23 STCM11 1,83 4.04 left hand 3487475 KM63TSMDMNL1504115 115 4.528 0 .000 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,84 4.05 3487476 KM63TSMDMNL1506115 115 4.528 0 .000 DN..150608/DN..442 IDSN442 KLM46L CKM23 STCM11 1,83 4.04 Left-Hand Tool MVMN 48° • 93° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3487480 KM63TSMVMNR16115 115 4.528 0 .000 VN..160408/VN..332 IVSN322 KLM34L CKM23 STCM11 1,93 4.26 left hand 3487477 KM63TSMVMNL16115 115 4.528 0 .000 VN..160408/VN..332 IVSN322 KLM34L CKM23 STCM11 1,93 4.26 WWW.WIDIA.COM A191
