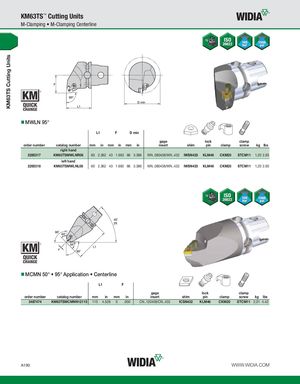

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping • M-Clamping Centerline MWLN 95° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265317 KM63TSMWLNR08 60 2.362 43 1.693 86 3.386 WN..080408/WN..432 IWSN433 KLM46 CKM20 STCM11 1,20 2.65 left hand 2265318 KM63TSMWLNL08 60 2.362 43 1.693 86 3.386 WN..080408/WN..432 IWSN433 KLM46 CKM20 STCM11 1,20 2.65 MCMN 50° • 95° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 3487474 KM63TSMCMNN12115 115 4.528 0 .000 CN..120408/CN..432 ICSN432 KLM46 CKM20 STCM11 2,01 4.42 A190 WWW.WIDIA.COM
