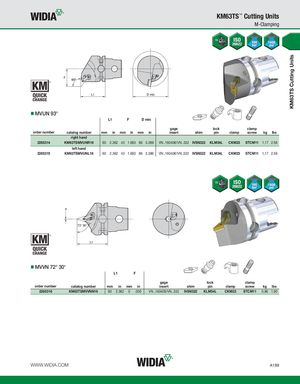

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MVUN 93° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265314 KM63TSMVUNR16 60 2.362 43 1.693 86 3.386 VN..160408/VN..332 IVSN322 KLM34L CKM23 STCM11 1,17 2.58 left hand 2265315 KM63TSMVUNL16 60 2.362 43 1.693 86 3.386 VN..160408/VN..332 IVSN322 KLM34L CKM23 STCM11 1,17 2.59 72˚ 30' MVVN 72° 30' L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 2265316 KM63TSMVVNN16 60 2.362 0 .000 VN..160408/VN..332 IVSN322 KLM34L CKM23 STCM11 0,86 1.90 WWW.WIDIA.COM A189
