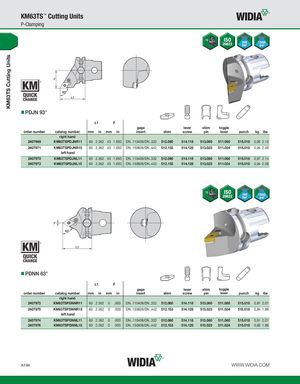

KM63TS Cutting Units KM63TS™ Cutting Units P-Clamping PDJN 93° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2407969 KM63TSPDJNR11 60 2.362 43 1.693 DN..110408/DN..332 512.060 514.118 513.060 511.060 515.018 0,95 2.10 2407971 KM63TSPDJNR15 60 2.362 43 1.693 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 0,94 2.08 left hand 2407970 KM63TSPDJNL11 60 2.362 43 1.693 DN..110408/DN..332 512.060 514.118 513.060 511.060 515.018 0,97 2.14 2407972 KM63TSPDJNL15 60 2.362 43 1.693 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 0,94 2.08 PDNN 63° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 2407973 KM63TSPDNNR11 60 2.362 0 .000 DN..110408/DN..332 512.060 514.118 513.060 511.060 515.018 0,91 2.01 2407975 KM63TSPDNNR15 60 2.362 0 .000 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 0,84 1.86 left hand 2407974 KM63TSPDNNL11 60 2.362 0 .000 DN..110408/DN..332 512.060 514.118 513.060 511.060 515.018 0,91 2.01 2407976 KM63TSPDNNL15 60 2.362 0 .000 DN..150608/DN..442 512.153 514.128 513.023 511.024 515.018 0,85 1.86 A194 WWW.WIDIA.COM
