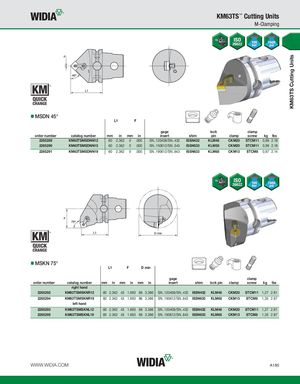

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MSDN 45° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 2265289 KM63TSMSDNN12 60 2.362 0 .000 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 0,99 2.18 2265290 KM63TSMSDNN15 60 2.362 0 .000 SN..150612/SN..543 ISSN533 KLM58 CKM20 STCM11 0,99 2.18 2265291 KM63TSMSDNN19 60 2.362 0 .000 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 0,97 2.14 MSKN 75° L1 F D min gage clamp order number catalog number mm in mm in mm in insert shim lock pin clamp screw kg lbs right hand 2265292 KM63TSMSKNR12 60 2.362 43 1.693 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,27 2.81 2265294 KM63TSMSKNR19 60 2.362 43 1.693 86 3.386 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,35 2.97 left hand 2265293 KM63TSMSKNL12 60 2.362 43 1.693 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,27 2.81 2265295 KM63TSMSKNL19 60 2.362 43 1.693 86 3.386 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,35 2.97 WWW.WIDIA.COM A185
