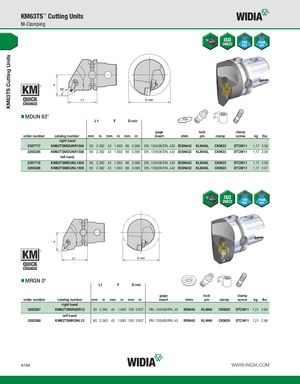

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MDUN 93° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2397717 KM63TSMDUNR1504 60 2.362 43 1.693 86 3.386 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,17 2.58 2265285 KM63TSMDUNR1506 60 2.362 43 1.693 86 3.386 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 1,17 2.58 left hand 2397718 KM63TSMDUNL1504 60 2.362 43 1.693 86 3.386 DN..150408/DN..432 IDSN442 KLM46L CKM23 STCM11 1,17 2.58 2265286 KM63TSMDUNL1506 60 2.362 43 1.693 86 3.386 DN..150608/DN..442 IDSN432 KLM46L CKM23 STCM11 1,17 2.57 MRGN 0° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265287 KM63TSMRGNR12 60 2.362 43 1.693 100 3.937 RN..120400/RN..43 IRSN43 KLM46 CKM20 STCM11 1,21 2.66 left hand 2265288 KM63TSMRGNL12 60 2.362 43 1.693 100 3.937 RN..120400/RN..43 IRSN43 KLM46 CKM20 STCM11 1,21 2.66 A184 WWW.WIDIA.COM
