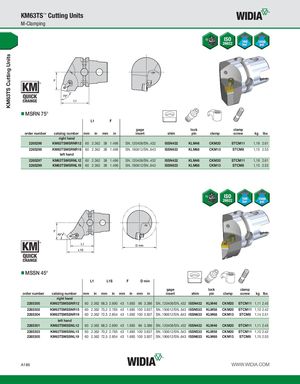

KM63TS Cutting Units KM63TS™ Cutting Units M-Clamping MSRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 2265296 KM63TSMSRNR12 60 2.362 38 1.496 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,18 2.61 2265298 KM63TSMSRNR19 60 2.362 38 1.496 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,15 2.53 left hand 2265297 KM63TSMSRNL12 60 2.362 38 1.496 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,19 2.61 2265299 KM63TSMSRNL19 60 2.362 38 1.496 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,15 2.53 MSSN 45° L1 L1S F D min gage lock clamp order number catalog number mm in mm in mm in mm in insert shim pin clamp screw kg lbs right hand 2265300 KM63TSMSSNR12 60 2.362 68,3 2.690 43 1.693 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,11 2.45 2265302 KM63TSMSSNR15 60 2.362 70,2 2.765 43 1.693 100 3.937 SN..150612/SN..543 ISSN533 KLM58 CKM20 STCM11 1,10 2.42 2265304 KM63TSMSSNR19 60 2.362 72,5 2.854 43 1.693 100 3.937 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,14 2.51 left hand 2265301 KM63TSMSSNL12 60 2.362 68,3 2.690 43 1.693 86 3.386 SN..120408/SN..432 ISSN432 KLM46 CKM20 STCM11 1,11 2.45 2265303 KM63TSMSSNL15 60 2.362 70,2 2.765 43 1.693 100 3.937 SN..150612/SN..543 ISSN533 KLM58 CKM20 STCM11 1,10 2.42 2265305 KM63TSMSSNL19 60 2.362 72,5 2.854 43 1.693 100 3.937 SN..190612/SN..643 ISSN633 KLM68 CKM13 STCM8 1,15 2.53 A186 WWW.WIDIA.COM
