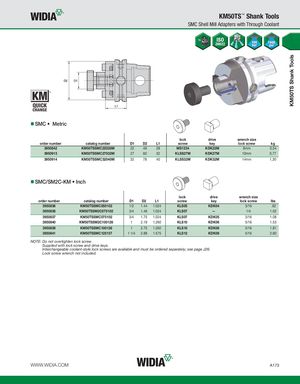

KM50TS Shank Tools KM50TS™ Shank Tools SMC Shell Mill Adapters with Through Coolant SMC • Metric lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3950842 KM50TSSMC22028M 22 49 28 MS1234 KDK22M 8mm 0,54 3950913 KM50TSSMC27032M 27 60 32 KLSS27M KDK27M 10mm 0,77 3950914 KM50TSSMC32040M 32 78 40 KLSS32M KDK32M 14mm 1,30 SMC/SM2C-KM • Inch lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw lbs 3950836 KM50TSSMC050102 1/2 1.44 1.024 KLS05 KDK04 3/16 .92 3950838 KM50TSSM2C075102 3/4 1.46 1.024 KLS07 — 1/4 1.02 3950837 KM50TSSMC075102 3/4 1.75 1.024 KLS07 KDK05 3/16 1.08 3950840 KM50TSSM2C100126 1 2.19 1.260 KLS10 KDK06 5/16 1.53 3950839 KM50TSSMC100126 1 2.75 1.260 KLS10 KDK06 5/16 1.81 3950841 KM50TSSMC125157 1 1/4 2.88 1.575 KLS12 KDK08 5/16 2.60 NOTE: Do not overtighten lock screw. Supplied with lock screw and drive keys. Interchangeable coolant-style lock screws are available and must be ordered separately; see page J26. Lock screw wrench not included. WWW.WIDIA.COM A173
