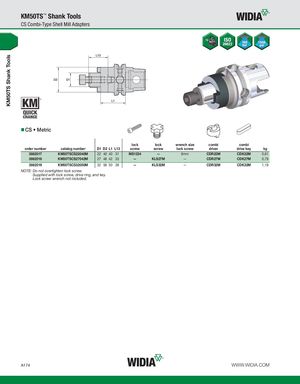

KM50TS Shank Tools KM50TS™ Shank Tools CS Combi-Type Shell Mill Adapters CS • Metric lock lock wrench size combi combi order number catalog number D1 D2 L1 L13 screw screw lock screw driver drive key kg 3862017 KM50TSCS22040M 22 40 40 31 MS1234 — 8mm CDR22M CDK22M 0,61 3862018 KM50TSCS27042M 27 48 42 33 — KLS27M — CDR27M CDK27M 0,79 3862019 KM50TSCS32050M 32 58 50 38 — KLS32M — CDR32M CDK32M 1,19 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and key. Lock screw wrench not included. A174 WWW.WIDIA.COM
