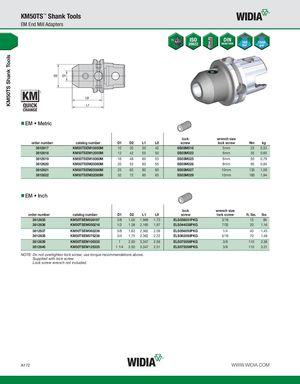

KM50TS Shank Tools KM50TS™ Shank Tools EM End Mill Adapters EM • Metric lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 3812617 KM50TSEM10050M 10 35 50 45 SS03M018 5mm 25 0,53 3812618 KM50TSEM12055M 12 42 55 50 SS03M023 6mm 35 0,65 3812619 KM50TSEM16060M 16 48 60 53 SS03M025 6mm 50 0,79 3812620 KM50TSEM20060M 20 52 60 55 SS03M026 8mm 95 0,84 3812621 KM50TSEM25080M 25 65 80 60 SS03M027 10mm 135 1,59 3812622 KM50TSEM32085M 32 72 85 65 SS03M029 10mm 160 1,94 EM • Inch lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw ft. lbs. lbs 3812635 KM50TSEM038197 3/8 1.00 1.969 1.73 ELS038031PKG 3/16 15 .95 3812636 KM50TSEM050216 1/2 1.38 2.165 1.97 ELS044038PKG 7/32 20 1.16 3812637 KM50TSEM062236 5/8 1.63 2.362 2.09 ELS056050PKG 1/4 40 1.43 3812638 KM50TSEM075236 3/4 1.75 2.362 2.22 ELS062050PKG 5/16 70 1.48 3812639 KM50TSEM100335 1 2.00 3.347 2.56 ELS075056PKG 3/8 110 2.38 3812640 KM50TSEM125335 1 1/4 2.50 3.347 2.51 ELS075056PKG 3/8 110 3.31 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. A172 WWW.WIDIA.COM
