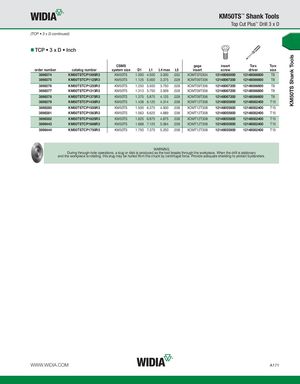

KM50TS Shank Tools KM50TS™ Shank Tools Top Cut Plus™ Drill 3 x D (TCP • 3 x D continued) TCP • 3 x D • Inch CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898374 KM50TSTCP1000R3 KM50TS 1.000 4.500 3.000 .032 XOMT070304 12148080000 12148086600 T8 3898375 KM50TSTCP1125R3 KM50TS 1.125 5.000 3.375 .028 XOMT09T306 12148067200 12148086600 T8 3898376 KM50TSTCP1250R3 KM50TS 1.250 5.500 3.750 .028 XOMT09T306 12148067200 12148086600 T8 3898377 KM50TSTCP1313R3 KM50TS 1.313 5.750 3.939 .028 XOMT09T306 12148067200 12148086600 T8 3898378 KM50TSTCP1375R3 KM50TS 1.375 5.875 4.125 .028 XOMT09T306 12148067200 12148086600 T8 3898379 KM50TSTCP1438R3 KM50TS 1.438 6.125 4.314 .038 XOMT12T308 12148055800 12148082400 T15 3898380 KM50TSTCP1500R3 KM50TS 1.500 6.375 4.500 .038 XOMT12T308 12148055800 12148082400 T15 3898381 KM50TSTCP1563R3 KM50TS 1.563 6.625 4.689 .038 XOMT12T308 12148055800 12148082400 T15 3898382 KM50TSTCP1625R3 KM50TS 1.625 6.875 4.875 .038 XOMT12T308 12148055800 12148082400 T15 3898443 KM50TSTCP1688R3 KM50TS 1.688 7.125 5.064 .038 XOMT12T308 12148055800 12148082400 T15 3898444 KM50TSTCP1750R3 KM50TS 1.750 7.375 5.250 .038 XOMT12T308 12148055800 12148082400 T15 WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. WWW.WIDIA.COM A171
