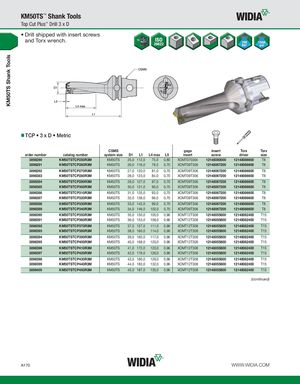

KM50TS Shank Tools KM50TS™ Shank Tools Top Cut Plus™ Drill 3 x D • Drill shipped with insert screws and Torx wrench. TCP • 3 x D • Metric CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898290 KM50TSTCP250R3M KM50TS 25,0 112,0 75,0 0,80 XOMT070304 12148080000 12148086600 T8 3898291 KM50TSTCP260R3M KM50TS 26,0 116,0 78,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898292 KM50TSTCP270R3M KM50TS 27,0 120,0 81,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898383 KM50TSTCP280R3M KM50TS 28,0 123,0 84,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898384 KM50TSTCP290R3M KM50TS 29,0 127,0 87,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898385 KM50TSTCP300R3M KM50TS 30,0 131,0 90,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898386 KM50TSTCP310R3M KM50TS 31,0 135,0 93,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898387 KM50TSTCP320R3M KM50TS 32,0 138,0 96,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898388 KM50TSTCP330R3M KM50TS 33,0 142,0 99,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898389 KM50TSTCP340R3M KM50TS 34,0 146,0 102,0 0,70 XOMT09T306 12148067200 12148086600 T8 3898390 KM50TSTCP350R3M KM50TS 35,0 150,0 105,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898391 KM50TSTCP360R3M KM50TS 36,0 153,0 108,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898392 KM50TSTCP370R3M KM50TS 37,0 157,0 111,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898393 KM50TSTCP380R3M KM50TS 38,0 160,0 114,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898394 KM50TSTCP390R3M KM50TS 39,0 165,0 117,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898395 KM50TSTCP400R3M KM50TS 40,0 168,0 120,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898396 KM50TSTCP410R3M KM50TS 41,0 172,0 123,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898397 KM50TSTCP420R3M KM50TS 42,0 176,0 126,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898398 KM50TSTCP430R3M KM50TS 43,0 180,0 129,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898399 KM50TSTCP440R3M KM50TS 44,0 183,0 132,0 0,96 XOMT12T308 12148055800 12148082400 T15 3898400 KM50TSTCP450R3M KM50TS 45,0 187,0 135,0 0,96 XOMT12T308 12148055800 12148082400 T15 (continued) A170 WWW.WIDIA.COM
