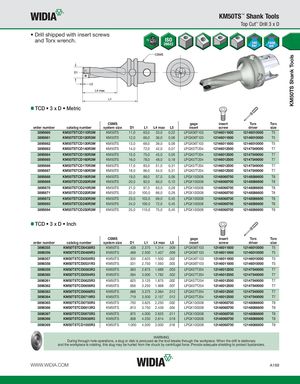

KM50TS Shank Tools KM50TS™ Shank Tools Top Cut™ Drill 3 x D • Drill shipped with insert screws and Torx wrench. TCD • 3 x D • Metric CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3895660 KM50TSTCD110R3M KM50TS 11,0 63,0 33,0 0,22 LPGX06T103 12146011800 12146010000 T5 3895661 KM50TSTCD120R3M KM50TS 12,0 66,0 36,0 0,06 LPGX06T103 12146011800 12146010000 T5 3895662 KM50TSTCD130R3M KM50TS 13,0 69,0 39,0 0,08 LPGX06T103 12146011800 12146010000 T5 3895663 KM50TSTCD140R3M KM50TS 14,0 72,0 42,0 0,07 LPGX07T204 12146012500 12147549000 T7 3895664 KM50TSTCD150R3M KM50TS 15,0 75,0 45,0 0,05 LPGX07T204 12146012500 12147549000 T7 3895665 KM50TSTCD160R3M KM50TS 16,0 78,0 48,0 0,18 LPGX07T204 12146012500 12147549000 T7 3895666 KM50TSTCD170R3M KM50TS 17,0 83,0 51,0 0,31 LPGX07T204 12146012500 12147549000 T7 3895667 KM50TSTCD180R3M KM50TS 18,0 86,0 54,0 0,31 LPGX07T204 12146012500 12147549000 T7 3895668 KM50TSTCD190R3M KM50TS 19,0 89,0 57,0 0,06 LPGX100308 12148068700 12148086600 T8 3895669 KM50TSTCD200R3M KM50TS 20,0 92,0 60,0 0,10 LPGX100308 12148068700 12148086600 T8 3895670 KM50TSTCD210R3M KM50TS 21,0 97,0 63,0 0,28 LPGX100308 12148068700 12148086600 T8 3895671 KM50TSTCD220R3M KM50TS 22,0 100,0 66,0 0,28 LPGX100308 12148068700 12148086600 T8 3895672 KM50TSTCD230R3M KM50TS 23,0 103,0 69,0 0,45 LPGX100308 12148068700 12148086600 T8 3895693 KM50TSTCD240R3M KM50TS 24,0 106,0 72,0 0,45 LPGX100308 12148068700 12148086600 T8 3895694 KM50TSTCD250R3M KM50TS 25,0 110,0 75,0 0,45 LPGX100308 12148068700 12148086600 T8 TCD • 3 x D • Inch CSMS gage insert Torx Torx order number catalog number system size D1 L1 L4 max L5 insert screw driver size 3898355 KM50TSTCD0438R3 KM50TS .438 2.375 1.314 .009 LPGX06T103 12146011800 12146010000 T5 3898356 KM50TSTCD0469R3 KM50TS .469 2.500 1.407 .009 LPGX06T103 12146011800 12146010000 T5 3898357 KM50TSTCD0500R3 KM50TS .500 2.625 1.500 .002 LPGX06T103 12146011800 12146010000 T5 3898358 KM50TSTCD0531R3 KM50TS .531 2.750 1.593 .003 LPGX06T103 12146011800 12146010000 T5 3898359 KM50TSTCD0563R3 KM50TS .563 2.875 1.689 .003 LPGX07T204 12146012500 12147549000 T7 3898360 KM50TSTCD0594R3 KM50TS .594 3.000 1.782 .002 LPGX07T204 12146012500 12147549000 T7 3898361 KM50TSTCD0625R3 KM50TS .625 3.125 1.875 .002 LPGX07T204 12146012500 12147549000 T7 3898362 KM50TSTCD0656R3 KM50TS .656 3.250 1.968 .007 LPGX07T204 12146012500 12147549000 T7 3898363 KM50TSTCD0688R3 KM50TS .688 3.375 2.064 .012 LPGX07T204 12146012500 12147549000 T7 3898364 KM50TSTCD0719R3 KM50TS .719 3.500 2.157 .012 LPGX07T204 12146012500 12147549000 T7 3898365 KM50TSTCD0750R3 KM50TS .750 3.625 2.250 .002 LPGX100308 12148068700 12148086600 T8 3898366 KM50TSTCD0813R3 KM50TS .813 3.750 2.439 .004 LPGX100308 12148068700 12148086600 T8 3898367 KM50TSTCD0875R3 KM50TS .875 4.000 2.625 .011 LPGX100308 12148068700 12148086600 T8 3898368 KM50TSTCD0938R3 KM50TS .938 4.250 2.814 .018 LPGX100308 12148068700 12148086600 T8 3898369 KM50TSTCD1000R3 KM50TS 1.000 4.500 3.000 .018 LPGX100308 12148068700 12148086600 T8 WARNING During through-hole operations, a slug or disk is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. WWW.WIDIA.COM A169
