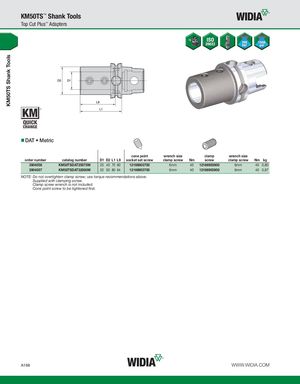

KM50TS Shank Tools KM50TS™ Shank Tools Top Cut Plus™ Adapters DAT • Metric cone point wrench size clamp wrench size order number catalog number D1 D2 L1 L9 socket set screw clamp screw Nm screw clamp screw Nm kg 3904056 KM50TSDAT25075M 25 45 75 60 12166903700 6mm 40 12166903900 6mm 40 0,80 3904057 KM50TSDAT32080M 32 50 80 64 12166903700 6mm 40 12166903900 6mm 40 0,87 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamping screw. Clamp screw wrench is not included. Cone point screw to be tightened first. A168 WWW.WIDIA.COM
