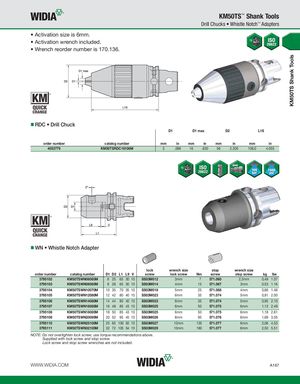

KM50TS Shank Tools KM50TS™ Shank Tools Drill Chucks • Whistle Notch™ Adapters • Activation size is 6mm. • Activation wrench included. • Wrench reorder number is 170.136. RDC • Drill Chuck D1 D1 max D2 L1S order number catalog number mm in mm in mm in mm in 4053779 KM50TSRDC16106M 3 .098 16 .630 56 2.205 106,0 4.055 WN • Whistle Notch Adapter lock wrench size stop wrench size order number catalog number D1 D2 L1 L9 V screw lock screw Nm screw stop screw kg lbs 3795102 KM50TSWN06065M 6 25 65 30 10 SS03M012 3mm 7 571.060 2,5mm 0,49 1.07 3795103 KM50TSWN08065M 8 28 65 30 10 SS03M014 4mm 15 571.067 3mm 0,53 1.16 3795104 KM50TSWN10070M 10 35 70 35 10 SS03M018 5mm 25 571.068 4mm 0,66 1.46 3795105 KM50TSWN12080M 12 42 80 40 10 SS03M023 6mm 35 571.074 5mm 0,91 2.00 3795106 KM50TSWN14080M 14 44 80 40 10 SS03M023 6mm 35 571.074 5mm 0,95 2.10 3795107 KM50TSWN16085M 16 48 85 43 10 SS03M025 6mm 50 571.075 6mm 1,13 2.49 3795108 KM50TSWN18085M 18 50 85 43 10 SS03M025 6mm 50 571.075 6mm 1,18 2.61 3795109 KM50TSWN20095M 20 52 95 45 10 SS03M026 8mm 95 571.076 6mm 1,69 3.05 3795110 KM50TSWN25100M 25 65 100 50 10 SS03M027 10mm 135 571.077 6mm 2,06 4.53 3795111 KM50TSWN32105M 32 72 105 54 10 SS03M029 10mm 160 571.077 6mm 2,50 5.51 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw and stop screw. Lock screw and stop screw wrenches are not included. WWW.WIDIA.COM A167
