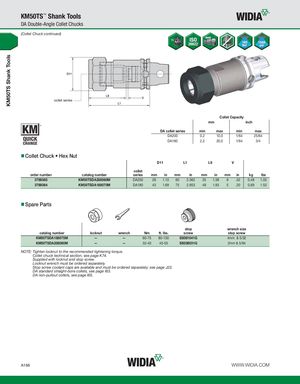

KM50TS Shank Tools KM50TS™ Shank Tools DA Double-Angle Collet Chucks (Collet Chuck continued) collet series Collet Capacity mm inch DA collet series min max min max DA200 0,2 10,0 1/64 25/64 DA180 2,2 20,0 1/64 3/4 Collet Chuck • Hex Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3789365 KM50TSDA208060M DA200 28 1.10 60 2.362 35 1.38 8 .32 0,48 1.05 3789364 KM50TSDA188075M DA180 43 1.69 75 2.953 49 1.93 5 .20 0,69 1.52 Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM50TSDA188075M — — 60-75 80-100 SS081041G 4mm & 5/32 KM50TSDA208060M — — 32-40 45-55 SS038031G 2mm & 5/64 NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65. A166 WWW.WIDIA.COM
