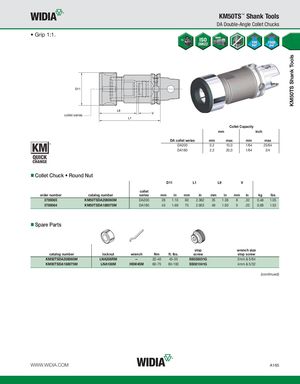

KM50TS Shank Tools KM50TS™ Shank Tools DA Double-Angle Collet Chucks • Grip 1:1. collet series Collet Capacity mm inch DA collet series min max min max DA200 0.2 10,0 1/64 25/64 DA180 2.2 20,0 1/64 3/4 Collet Chuck • Round Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3789365 KM50TSDA208060M DA200 28 1.10 60 2.362 35 1.38 8 .32 0,48 1.05 3789364 KM50TSDA188075M DA180 43 1.69 75 2.953 49 1.93 5 .20 0,69 1.52 Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM50TSDA208060M LNA208RM — 32-40 45-55 SS038031G 2mm & 5/64 KM50TSDA188075M LNA188M HSW45M 60-75 80-100 SS081041G 4mm & 5/32 (continued) WWW.WIDIA.COM A165
