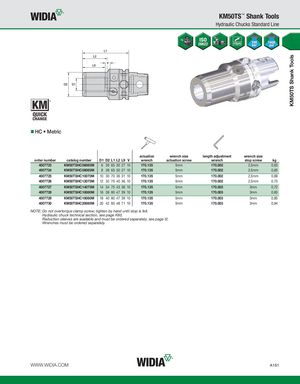

KM50TS Shank Tools KM50TS™ Shank Tools Hydraulic Chucks Standard Line HC • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw kg 4007723 KM50TSHC06065M 6 26 65 30 27 10 170.135 5mm 170.002 2,5mm 0,63 4007724 KM50TSHC08065M 8 28 65 30 27 10 170.135 5mm 170.002 2,5mm 0,65 4007725 KM50TSHC10070M 10 30 70 36 31 10 170.135 5mm 170.002 2,5mm 0,69 4007726 KM50TSHC12075M 12 32 75 40 36 10 170.135 5mm 170.002 2,5mm 0,73 4007727 KM50TSHC14075M 14 34 75 43 36 10 170.135 5mm 170.003 3mm 0,72 4007728 KM50TSHC16080M 16 38 80 47 39 10 170.135 5mm 170.003 3mm 0,83 4007729 KM50TSHC18080M 18 40 80 47 39 10 170.135 5mm 170.003 3mm 0,85 4007730 KM50TSHC20085M 20 42 85 48 71 10 170.135 5mm 170.003 3mm 0,94 NOTE: Do not overtorque clamp screw; tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Reduction sleeves are available and must be ordered separately; see page I2. Wrenches must be ordered separately. WWW.WIDIA.COM A161
