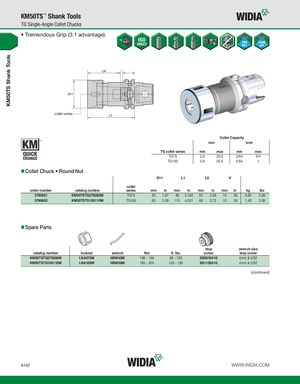

KM50TS Shank Tools KM50TS™ Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 Collet Chuck • Round Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3790601 KM50TSTG075080M TG75 50 1.97 80 3.150 53 2.09 10 .39 0,95 2.09 3790602 KM50TSTG100110M TG100 60 2.36 110 4.331 69 2.72 10 .39 1,40 3.09 Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM50TSTG075080M LNA075M HSW45M 108 - 136 80 - 100 SS081041G 4mm & 5/32 KM50TSTG100110M LNA100M HSW58M 163 - 203 120 - 150 SS112041G 4mm & 5/32 (continued) A162 WWW.WIDIA.COM
