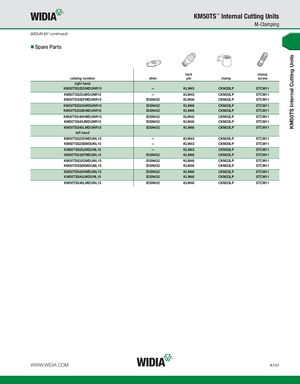

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units M-Clamping (MDUN 93° continued) Spare Parts lock clamp catalog number shim pin clamp screw right hand KM50TSS25DMDUNR15 — KLM43 CKM20LP STCM11 KM50TSS25JMDUNR15 — KLM43 CKM20LP STCM11 KM50TSS32FMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS32GMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS32KMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40HMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40JMDUNR15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40LMDUNR15 IDSN432 KLM46 CKM23LP STCM11 left hand KM50TSS25DMDUNL15 — KLM43 CKM20LP STCM11 KM50TSS25EMDUNL15 — KLM43 CKM20LP STCM11 KM50TSS25JMDUNL15 — KLM43 CKM20LP STCM11 KM50TSS32FMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS32GMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS32KMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40HMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40JMDUNL15 IDSN432 KLM46 CKM23LP STCM11 KM50TSS40LMDUNL15 IDSN432 KLM46 CKM23LP STCM11 WWW.WIDIA.COM A151
