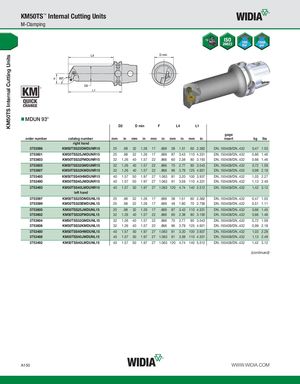

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units M-Clamping MDUN 93° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3753598 KM50TSS25DMDUNR15 25 .98 32 1.26 17 .669 38 1.51 60 2.362 DN..150408/DN..432 0,47 1.03 3753601 KM50TSS25JMDUNR15 25 .98 32 1.26 17 .669 87 3.43 110 4.331 DN..150408/DN..432 0,66 1.46 3753603 KM50TSS32FMDUNR15 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 DN..150408/DN..432 0,66 1.46 3753605 KM50TSS32GMDUNR15 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 DN..150408/DN..432 0,72 1.59 3753607 KM50TSS32KMDUNR15 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 DN..150408/DN..432 0,99 2.18 3753485 KM50TSS40HMDUNR15 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 DN..150408/DN..432 1,03 2.27 3753490 KM50TSS40JMDUNR15 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 DN..150408/DN..432 1,13 2.49 3753493 KM50TSS40LMDUNR15 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 DN..150408/DN..432 1,42 3.12 left hand 3753597 KM50TSS25DMDUNL15 25 .98 32 1.26 17 .669 38 1.51 60 2.362 DN..150408/DN..432 0,47 1.03 3753599 KM50TSS25EMDUNL15 25 .98 32 1.26 17 .669 48 1.90 70 2.756 DN..150408/DN..432 0,51 1.11 3753600 KM50TSS25JMDUNL15 25 .98 32 1.26 17 .669 87 3.43 110 4.331 DN..150408/DN..432 0,66 1.45 3753602 KM50TSS32FMDUNL15 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 DN..150408/DN..432 0,66 1.46 3753604 KM50TSS32GMDUNL15 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 DN..150408/DN..432 0,72 1.59 3753606 KM50TSS32KMDUNL15 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 DN..150408/DN..432 0,99 2.18 3753480 KM50TSS40HMDUNL15 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 DN..150408/DN..432 1,03 2.28 3753488 KM50TSS40JMDUNL15 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 DN..150408/DN..432 1,13 2.49 3753492 KM50TSS40LMDUNL15 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 DN..150408/DN..432 1,42 3.12 (continued) A150 WWW.WIDIA.COM
