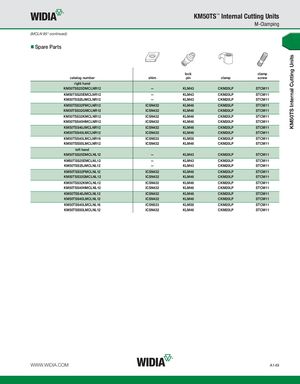

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units M-Clamping (MCLN 95° continued) Spare Parts lock clamp catalog number shim pin clamp screw right hand KM50TSS25DMCLNR12 — KLM43 CKM20LP STCM11 KM50TSS25EMCLNR12 — KLM43 CKM20LP STCM11 KM50TSS25JMCLNR12 — KLM43 CKM20LP STCM11 KM50TSS32FMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS32GMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS32KMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40HMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40JMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40LMCLNR12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40LMCLNR16 ICSN533 KLM58 CKM20LP STCM11 KM50TSS50LMCLNR12 ICSN432 KLM46 CKM20LP STCM11 left hand KM50TSS25DMCLNL12 — KLM43 CKM20LP STCM11 KM50TSS25EMCLNL12 — KLM43 CKM20LP STCM11 KM50TSS25JMCLNL12 — KLM43 CKM20LP STCM11 KM50TSS32FMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS32GMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS32KMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40HMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40JMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40LMCLNL12 ICSN432 KLM46 CKM20LP STCM11 KM50TSS40LMCLNL16 ICSN533 KLM58 CKM20LP STCM11 KM50TSS50LMCLNL12 ICSN432 KLM46 CKM20LP STCM11 WWW.WIDIA.COM A149
