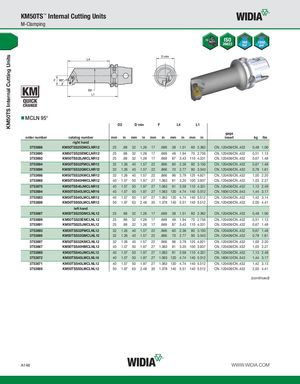

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units M-Clamping MCLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3753688 KM50TSS25DMCLNR12 25 .98 32 1.26 17 .669 38 1.51 60 2.362 CN..120408/CN..432 0,48 1.06 3753690 KM50TSS25EMCLNR12 25 .98 32 1.26 17 .669 49 1.94 70 2.756 CN..120408/CN..432 0,51 1.13 3753692 KM50TSS25JMCLNR12 25 .98 32 1.26 17 .669 87 3.43 110 4.331 CN..120408/CN..432 0,67 1.48 3753694 KM50TSS32FMCLNR12 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 CN..120408/CN..432 0,67 1.48 3753696 KM50TSS32GMCLNR12 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 CN..120408/CN..432 0,78 1.61 3753698 KM50TSS32KMCLNR12 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 CN..120408/CN..432 1,00 2.20 3753668 KM50TSS40HMCLNR12 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 CN..120408/CN..432 1,03 2.27 3753670 KM50TSS40JMCLNR12 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 CN..120408/CN..432 1,13 2.49 3753684 KM50TSS40LMCLNR16 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 CN..160612/CN..543 1,44 3.17 3753683 KM50TSS40LMCLNR12 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 CN..120408/CN..432 1,42 3.14 3753686 KM50TSS50LMCLNR12 50 1.97 63 2.48 35 1.378 140 5.51 140 5.512 CN..120408/CN..432 2,00 4.41 left hand 3753687 KM50TSS25DMCLNL12 25 .98 32 1.26 17 .669 38 1.51 60 2.362 CN..120408/CN..432 0,48 1.06 3753689 KM50TSS25EMCLNL12 25 .98 32 1.26 17 .669 49 1.94 70 2.756 CN..120408/CN..432 0,51 1.13 3753691 KM50TSS25JMCLNL12 25 .98 32 1.26 17 .669 87 3.43 110 4.331 CN..120408/CN..432 0,67 1.48 3753693 KM50TSS32FMCLNL12 32 1.26 40 1.57 22 .866 60 2.38 80 3.150 CN..120408/CN..432 0,67 1.48 3753695 KM50TSS32GMCLNL12 32 1.26 40 1.57 22 .866 70 2.77 90 3.543 CN..120408/CN..432 0,78 1.61 3753697 KM50TSS32KMCLNL12 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 CN..120408/CN..432 1,00 2.20 3753667 KM50TSS40HMCLNL12 40 1.57 50 1.97 27 1.063 81 3.20 100 3.937 CN..120408/CN..432 1,03 2.27 3753669 KM50TSS40JMCLNL12 40 1.57 50 1.97 27 1.063 91 3.59 110 4.331 CN..120408/CN..432 1,13 2.48 3753672 KM50TSS40LMCLNL16 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 CN..160612/CN..543 1,44 3.17 3753671 KM50TSS40LMCLNL12 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 CN..120408/CN..432 1,42 3.13 3753685 KM50TSS50LMCLNL12 50 1.97 63 2.48 35 1.378 140 5.51 140 5.512 CN..120408/CN..432 2,00 4.41 (continued) A148 WWW.WIDIA.COM
