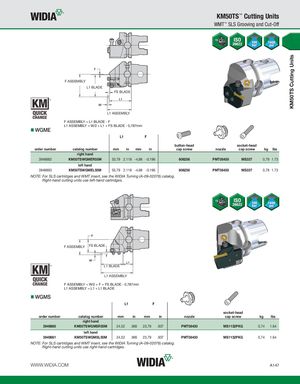

KM50TS Cutting Units KM50TS™ Cutting Units WMT™ SLS Grooving and Cut-Off F ASSEMBLY L1 BLADE FS BLADE L1 ASSEMBLY F ASSEMBLY = L1 BLADE - F L1 ASSEMBLY = W/2 + L1 + FS BLADE - 0,787mm WGME L1 F button-head socket-head order number catalog number mm in mm in cap screw nozzle cap screw kg lbs right hand 3949882 KM50TSWGMER55M 53,79 2.118 -4,98 -0.196 606256 PMT08430 MS337 0,79 1.73 left hand 3949893 KM50TSWGMEL55M 53,79 2.118 -4,98 -0.196 606256 PMT08430 MS337 0,78 1.73 NOTE: For SLS cartridges and WMT insert, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use left-hand cartridges. F ASSEMBLY FS BLADE L1 BLADE L1 ASSEMBLY F ASSEMBLY = W/2 + F + FS BLADE - 0,787mm L1 ASSEMBLY = L1 + L1 BLADE WGMS L1 F socket-head order number catalog number mm in mm in nozzle cap screw kg lbs right hand 3949880 KM50TSWGMSR55M 24,52 .965 23,79 .937 PMT08430 MS1132PKG 0,74 1.64 left hand 3949881 KM50TSWGMSL55M 24,52 .965 23,79 .937 PMT08430 MS1132PKG 0,74 1.64 NOTE: For SLS cartridges and WMT insert, see the WIDIA Turning (A-09-02078) catalog. Right-hand cutting units use right-hand cartridges. WWW.WIDIA.COM A147
