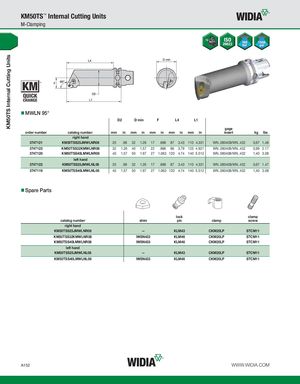

KM50TS Internal Cutting Units KM50TS™ Internal Cutting Units M-Clamping MWLN 95° D2 D min F L4 L1 gage order number catalog number mm in mm in mm in mm in mm in insert kg lbs right hand 3747121 KM50TSS25JMWLNR08 25 .98 32 1.26 17 .669 87 3.43 110 4.331 WN..080408/WN..432 0,67 1.48 3747123 KM50TSS32KMWLNR08 32 1.26 40 1.57 22 .866 96 3.79 125 4.921 WN..080408/WN..432 0,99 2.17 3747120 KM50TSS40LMWLNR08 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 WN..080408/WN..432 1,40 3.08 left hand 3747122 KM50TSS25JMWLNL08 25 .98 32 1.26 17 .669 87 3.43 110 4.331 WN..080408/WN..432 0,67 1.47 3747119 KM50TSS40LMWLNL08 40 1.57 50 1.97 27 1.063 120 4.74 140 5.512 WN..080408/WN..432 1,40 3.08 Spare Parts lock clamp catalog number shim pin clamp screw right hand KM50TSS25JMWLNR08 — KLM43 CKM20LP STCM11 KM50TSS32KMWLNR08 IWSN433 KLM46 CKM20LP STCM11 KM50TSS40LMWLNR08 IWSN433 KLM46 CKM20LP STCM11 left hand KM50TSS25JMWLNL08 — KLM43 CKM20LP STCM11 KM50TSS40LMWLNL08 IWSN433 KLM46 CKM20LP STCM11 A152 WWW.WIDIA.COM
