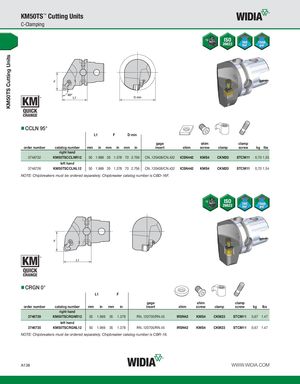

KM50TS Cutting Units KM50TS™ Cutting Units C-Clamping CCLN 95° L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw clamp screw kg lbs right hand 3746732 KM50TSCCLNR12 50 1.969 35 1.378 70 2.756 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 0,70 1.55 left hand 3746726 KM50TSCCLNL12 50 1.969 35 1.378 70 2.756 CN..120408/CN.432 ICSN442 KMS4 CKM20 STCM11 0,70 1.54 NOTE: Chipbreakers must be ordered separately. Chipbreaker catalog number is CBD-16F. CRGN 0° L1 F gage shim clamp order number catalog number mm in mm in insert shim screw clamp screw kg lbs right hand 3746739 KM50TSCRGNR12 50 1.969 35 1.378 RN..120700/RN.45 IRSN42 KMS4 CKM23 STCM11 0,67 1.47 left hand 3746735 KM50TSCRGNL12 50 1.969 35 1.378 RN..120700/RN.45 IRSN42 KMS4 CKM23 STCM11 0,67 1.47 NOTE: Chipbreakers must be ordered separately. Chipbreaker catalog number is CBR-16. A138 WWW.WIDIA.COM
