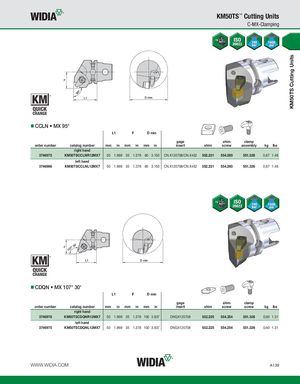

KM50TS Cutting Units KM50TS™ Cutting Units C-MX-Clamping CCLN • MX 95° L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw assembly kg lbs right hand 3746972 KM50TSCCLNR12MX7 50 1.969 35 1.378 80 3.150 CN.X120708/CN.X452 552.221 554.260 551.326 0,67 1.48 left hand 3746966 KM50TSCCLNL12MX7 50 1.969 35 1.378 80 3.150 CN.X120708/CN.X452 552.221 554.260 551.326 0,67 1.48 CDQN • MX 107° 30' L1 F D min gage shim clamp order number catalog number mm in mm in mm in insert shim screw screw kg lbs right hand 3746978 KM50TSCDQNR12MX7 50 1.969 35 1.378 100 3.937 DNGX120708 552.225 554.254 551.326 0,60 1.31 left hand 3746975 KM50TSCDQNL12MX7 50 1.969 35 1.378 100 3.937 DNGX120708 552.225 554.254 551.326 0,60 1.31 WWW.WIDIA.COM A139
