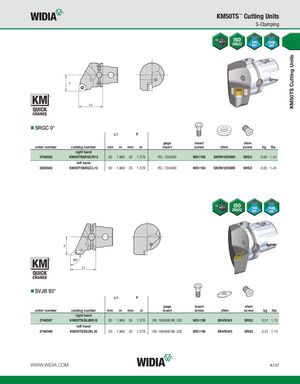

KM50TS Cutting Units KM50TS™ Cutting Units S-Clamping F SRGC 0° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 3746595 KM50TSSRGCR12 50 1.969 35 1.378 RC..1204M0 MS1156 SKRN1203M0 SRS3 0,65 1.43 left hand 3838582 KM50TSSRGCL12 50 1.969 35 1.378 RC..1204M0 MS1156 SKRN1203M0 SRS3 0,65 1.43 SVJB 93° L1 F gage insert shim order number catalog number mm in mm in insert screw shim screw kg lbs right hand 3746597 KM50TSSVJBR16 50 1.969 35 1.378 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,51 1.13 left hand 3746596 KM50TSSVJBL16 50 1.969 35 1.378 VB..160408/VB..332 MS1156 SKVN343 SRS3 0,51 1.13 WWW.WIDIA.COM A137
