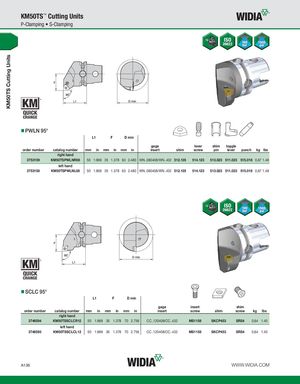

KM50TS Cutting Units KM50TS™ Cutting Units P-Clamping • S-Clamping PWLN 95° L1 F D min gage lever shim toggle order number catalog number mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3753159 KM50TSPWLNR08 50 1.969 35 1.378 63 2.480 WN..080408/WN..432 512.135 514.123 513.023 511.023 515.018 0,67 1.48 left hand 3753158 KM50TSPWLNL08 50 1.969 35 1.378 63 2.480 WN..080408/WN..432 512.135 514.123 513.023 511.023 515.018 0,67 1.48 SCLC 95° L1 F D min gage insert shim order number catalog number mm in mm in mm in insert screw shim screw kg lbs right hand 3746594 KM50TSSCLCR12 50 1.969 35 1.378 70 2.756 CC..120408/CC..432 MS1158 SKCP453 SRS4 0,64 1.40 left hand 3746593 KM50TSSCLCL12 50 1.969 35 1.378 70 2.756 CC..120408/CC..432 MS1158 SKCP453 SRS4 0,64 1.40 A136 WWW.WIDIA.COM
