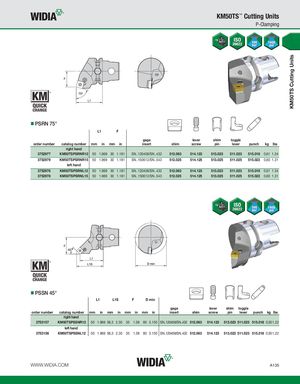

KM50TS Cutting Units KM50TS™ Cutting Units P-Clamping PSRN 75° L1 F gage lever shim toggle order number catalog number mm in mm in insert shim screw pin lever punch kg lbs right hand 3752977 KM50TSPSRNR12 50 1.969 30 1.181 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,61 1.34 3752979 KM50TSPSRNR15 50 1.969 30 1.181 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 0,60 1.31 left hand 3752976 KM50TSPSRNL12 50 1.969 30 1.181 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,61 1.34 3752978 KM50TSPSRNL15 50 1.969 30 1.181 SN..150612/SN..543 512.025 514.125 513.025 511.025 515.022 0,60 1.31 PSSN 45° L1 L1S F D min gage lever shim toggle order number catalog number mm in mm in mm in mm in insert shim screw pin lever punch kg lbs right hand 3753157 KM50TSPSSNR12 50 1.969 58,3 2.30 35 1.38 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,55 1.22 left hand 3753156 KM50TSPSSNL12 50 1.969 58,3 2.30 35 1.38 80 3.150 SN..120408/SN..432 512.063 514.123 513.023 511.023 515.018 0,55 1.22 WWW.WIDIA.COM A135
