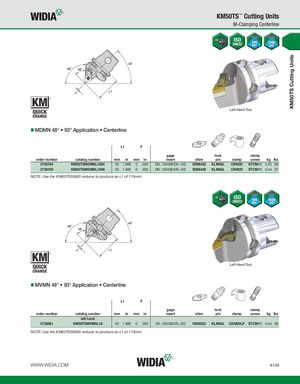

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping Centerline Left-Hand Tool MDMN 48° • 93° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs 3738154 KM50TSMDMNL1504 50 1.969 0 .000 DN..150408/DN..432 IDSN442 KLM46L CKM20 STCM11 0,45 .98 3738155 KM50TSMDMNL1506 50 1.969 0 .000 DN..150408/DN..432 IDSN432 KLM46L CKM20 STCM11 0,44 .97 NOTE: Use the KM63TSS5065 reducer to produce an L1 of 115mm. Left-Hand Tool MVMN 48° • 93° Application • Centerline L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs left hand 3738561 KM50TSMVMNL16 50 1.969 0 .000 VN..160408/VN..332 IVSN322 KLM34L CKM20LP STCM11 0,44 .98 NOTE: Use the KM63TSS5065 reducer to produce an L1 of 115mm. WWW.WIDIA.COM A129
