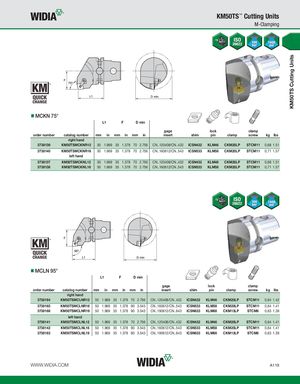

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping MCKN 75° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3738139 KM50TSMCKNR12 50 1.969 35 1.378 70 2.756 CN..120408/CN..432 ICSN432 KLM46 CKM20LP STCM11 0,68 1.51 3738140 KM50TSMCKNR16 50 1.969 35 1.378 70 2.756 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,71 1.57 left hand 3738137 KM50TSMCKNL12 50 1.969 35 1.378 70 2.756 CN..120408/CN..432 ICSN432 KLM46 CKM20LP STCM11 0,68 1.51 3738138 KM50TSMCKNL16 50 1.969 35 1.378 70 2.756 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,71 1.57 MCLN 95° L1 F D min gage lock clamp order number catalog number mm in mm in mm in insert shim pin clamp screw kg lbs right hand 3738164 KM50TSMCLNR12 50 1.969 35 1.378 70 2.756 CN..120408/CN..432 ICSN432 KLM46 CKM20LP STCM11 0,64 1.42 3738165 KM50TSMCLNR16 50 1.969 35 1.378 90 3.543 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,64 1.41 3738166 KM50TSMCLNR19 50 1.969 35 1.378 90 3.543 CN..190612/CN..643 ICSN633 KLM68 CKM13LP STCM8 0,63 1.39 left hand 3738141 KM50TSMCLNL12 50 1.969 35 1.378 70 2.756 CN..120408/CN..432 ICSN432 KLM46 CKM20LP STCM11 0,64 1.41 3738142 KM50TSMCLNL16 50 1.969 35 1.378 90 3.543 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,64 1.41 3738163 KM50TSMCLNL19 50 1.969 35 1.378 90 3.543 CN..190612/CN..643 ICSN633 KLM68 CKM13LP STCM8 0,63 1.39 WWW.WIDIA.COM A119
