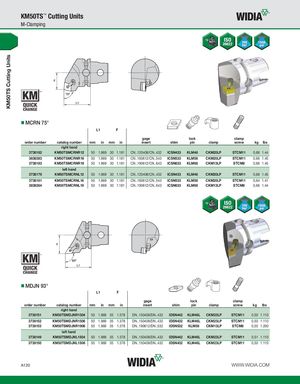

KM50TS Cutting Units KM50TS™ Cutting Units M-Clamping MCRN 75° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3738182 KM50TSMCRNR12 50 1.969 30 1.181 CN..120408/CN..432 ICSN433 KLM46 CKM20LP STCM11 0,66 1.44 3838383 KM50TSMCRNR16 50 1.969 30 1.181 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,66 1.45 3738183 KM50TSMCRNR19 50 1.969 30 1.181 CN..190612/CN..643 ICSN633 KLM68 CKM13LP STCM8 0,66 1.45 left hand 3738179 KM50TSMCRNL12 50 1.969 30 1.181 CN..120408/CN..432 ICSN433 KLM46 CKM20LP STCM11 0,66 1.45 3738181 KM50TSMCRNL16 50 1.969 30 1.181 CN..160612/CN..543 ICSN533 KLM58 CKM20LP STCM11 0,64 1.41 3838384 KM50TSMCRNL19 50 1.969 30 1.181 CN..190612/CN..643 ICSN633 KLM68 CKM13LP STCM8 0,66 1.44 MDJN 93° L1 F gage lock clamp order number catalog number mm in mm in insert shim pin clamp screw kg lbs right hand 3738151 KM50TSMDJNR1504 50 1.969 35 1.378 DN..150408/DN..432 IDSN442 KLM46L CKM23LP STCM11 0,50 1.110 3738152 KM50TSMDJNR1506 50 1.969 35 1.378 DN..150408/DN..432 IDSN432 KLM46L CKM23LP STCM11 0,50 1.110 3738153 KM50TSMDJNR1906 50 1.969 35 1.378 DN..190612/DN..532 IDSN532 KLM58 CKM13LP STCM8 0,55 1.200 left hand 3738149 KM50TSMDJNL1504 50 1.969 35 1.378 DN..150408/DN..432 IDSN442 KLM46L CKM23LP STCM11 0,51 1.110 3738150 KM50TSMDJNL1506 50 1.969 35 1.378 DN..150408/DN..432 IDSN432 KLM46L CKM23LP STCM11 0,50 1.110 A120 WWW.WIDIA.COM
