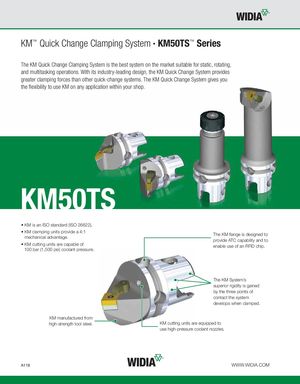

KM™ Quick Change Clamping System • KM50TS™ Series The KM Quick Change Clamping System is the best system on the market suitable for static, rotating, and multitasking operations. With its industry-leading design, the KM Quick Change System provides greater clamping forces than other quick-change systems. The KM Quick Change System gives you the flexibility to use KM on any application within your shop. KM50TS • KM is an ISO standard (ISO 26622). • KM clamping units provide a 4:1mechanical advantage. The KM flange is designed to provide ATC capability and to • KM cutting units are capable of enable use of an RFID chip. 100 bar (1,500 psi) coolant pressure. The KM System’s superior rigidity is gained by the three points of contact the system develops when clamped. KM manufactured from high-strength tool steel. KM cutting units are equipped to use high-pressure coolant nozzles. A118 WWW.WIDIA.COM
