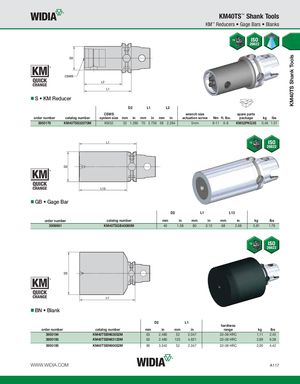

KM40TS Shank Tools KM40TS™ Shank Tools KM™ Reducers • Gage Bars • Blanks S • KM Reducer D2 L1 L2 CSWS wrench size spare parts order number catalog number system size mm in mm in mm in actuation screw Nm ft. lbs. package kg lbs 3950178 KM40TSS32070M KM32 32 1.260 70 2.756 58 2.284 5mm 8-11 6-8 KM32PKG3S 0,46 1.01 GB • Gage Bar D2 L1 L13 order number catalog number mm in mm in mm in kg lbs 3959981 KM40TSGB40080M 40 1.58 80 3.15 68 2.68 0,81 1.79 BN • Blank D2 L1 hardness order number catalog number mm in mm in range kg lbs 3950194 KM40TSBN63052M 63 2.480 52 2.047 32–38 HRC 1,11 2.45 3950193 KM40TSBN63125M 63 2.480 125 4.921 32–38 HRC 2,89 6.38 3950195 KM40TSBN90052M 90 3.543 52 2.047 32–38 HRC 2,00 4.42 WWW.WIDIA.COM A117
