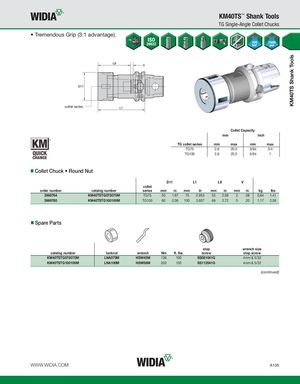

KM40TS Shank Tools KM40TS™ Shank Tools TG Single-Angle Collet Chucks • Tremendous Grip (3:1 advantage). collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 Collet Chuck • Round Nut D11 L1 L9 V collet order number catalog number series mm in mm in mm in mm in kg lbs 3969764 KM40TSTG075075M TG75 50 1.97 75 2.953 53 2.09 2 .08 0,64 1.41 3969765 KM40TSTG100100M TG100 60 2.36 100 3.937 69 2.72 5 .20 1,17 2.58 Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM40TSTG075075M LNA075M HSW45M 136 100 SS081041G 4mm & 5/32 KM40TSTG100100M LNA100M HSW58M 203 150 SS112041G 4mm & 5/32 (continued) WWW.WIDIA.COM A105
