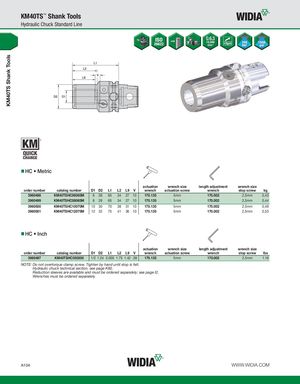

KM40TS Shank Tools KM40TS™ Shank Tools Hydraulic Chuck Standard Line HC • Metric actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw kg 3960498 KM40TSHC06065M 6 26 65 34 27 10 170.135 5mm 170.002 2,5mm 0,43 3960499 KM40TSHC08065M 8 28 65 34 27 10 170.135 5mm 170.002 2,5mm 0,44 3960500 KM40TSHC10070M 10 30 70 38 31 10 170.135 5mm 170.002 2,5mm 0,49 3960501 KM40TSHC12075M 12 32 75 41 36 10 170.135 5mm 170.002 2,5mm 0,53 HC • Inch actuation wrench size length adjustment wrench size order number catalog number D1 D2 L1 L2 L9 V wrench actuation screw wrench stop screw lbs 3960497 KM40TSHC050300 1/2 1.24 3.000 1.75 1.42 .39 170.135 5mm 170.002 2,5mm 1.16 NOTE: Do not overtorque clamp screw. Tighten by hand until stop is felt. Hydraulic chuck technical section, see page K60. Reduction sleeves are available and must be ordered separately; see page I2. Wrenches must be ordered separately. A104 WWW.WIDIA.COM
