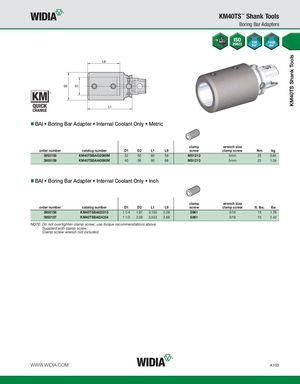

KM40TS Shank Tools KM40TS™ Shank Tools Boring Bar Adapters BAI • Boring Bar Adapter • Internal Coolant Only • Metric clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw Nm kg 3950158 KM40TSBAI32080M 32 50 80 58 MS1213 5mm 25 0,81 3950159 KM40TSBAI40090M 40 58 90 68 MS1213 5mm 25 1,04 BAI • Boring Bar Adapter • Internal Coolant Only • Inch clamp wrench size order number catalog number D1 D2 L1 L9 screw clamp screw ft. lbs. lbs 3950156 KM40TSBAI20315 1 1/4 1.97 3.150 2.28 S861 3/16 15 1.78 3950157 KM40TSBAI24354 1 1/2 2.28 3.543 2.68 S861 3/16 15 2.43 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. WWW.WIDIA.COM A103
