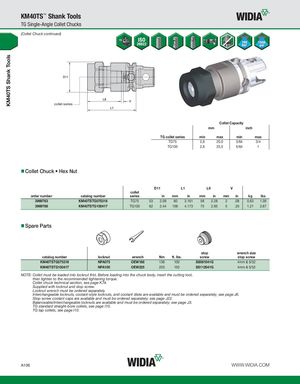

KM40TS Shank Tools KM40TS™ Shank Tools TG Single-Angle Collet Chucks (Collet Chuck continued) collet series Collet Capacity mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 Collet Chuck • Hex Nut D11 L1 L9 V collet order number catalog number series in mm in mm in mm in kg lbs 3969763 KM40TSTG075316 TG75 53 2.09 80 3.161 58 2.28 2 .08 0,63 1.39 3969766 KM40TSTG100417 TG100 62 2.44 106 4.173 75 2.95 5 .20 1,21 2.67 Spare Parts stop wrench size catalog number locknut wrench Nm ft. lbs. screw stop screw KM40TSTG075316 NPA075 OEW188 136 100 SS081041G 4mm & 5/32 KM40TSTG100417 NPA100 OEW225 203 150 SS112041G 4mm & 5/32 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/Interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. A106 WWW.WIDIA.COM
