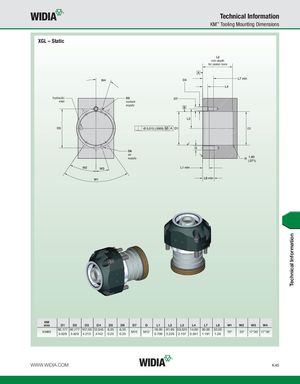

Technical Information KM™ Tooling Mounting Dimensions XGL – Static L2 min depth for piston bore hydraulic D5 inlet coolant supply D2 D6 air supply KM size D1 D2 D3 D4 D5 D6 D7 G L1 L2 L3 L4 L7 L8 W1 W2 W3 W4 92,177 92,177 107,00 12,045 6,35 6,35 18,00 81,95 53,525 14,00 30,00 32,00 KM80 3.629 3.629 4.213 .4742 0.25 0.25 M10 M12 0.709 3.226 2.107 0.551 1.181 1.26 70º 35º 17"30' 17"30' WWW.WIDIA.COM K45 Technical Information
