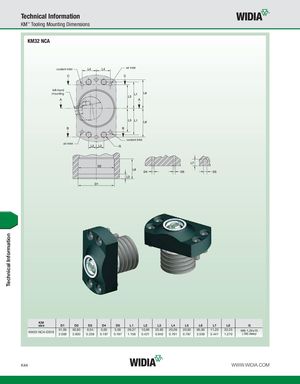

Technical Information KM™ Tooling Mounting Dimensions KM32 NCA coolant inlet air inlet left-hand mounting coolant inlet air inlet Technical Information KM size D1 D2 D3 D4 D5 L1 L2 L3 L4 L5 L6 L7 L8 G 51,00 50,80 6,04 5,00 5,00 29,37 10,69 23,93 20,09 20,00 65,00 11,20 32,25 M8-1,25x15 KM32-NCA-DS16 (.59) deep 2.008 2.000 0.238 0.197 0.197 1.156 0.421 0.942 0.791 0.787 2.559 0.441 1.270 K44 WWW.WIDIA.COM
