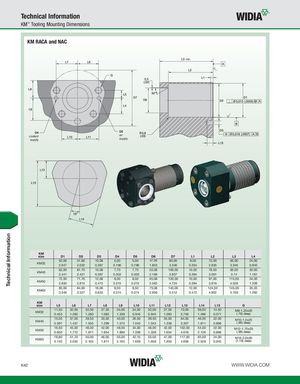

Technical Information KM™ Tooling Mounting Dimensions KM RACA and NAC min D4 D5 coolant air supply supply Technical Information KM size D1 D2 D3 D4 D5 D6 D7 L1 L2 L3 L4 52,00 51,60 10,08 5,00 5,00 47,08 85,00 9,00 72,00 85,00 24,00 KM32 2.047 2.032 0.397 0.196 0.196 1.853 3.346 0.354 2.835 3.346 0.945 62,00 61,70 10,08 7,70 7,70 55,08 100,00 10,00 78,50 95,00 30,00 KM40 2.441 2.421 0.397 0.303 0.303 2.168 3.937 0.394 3.091 3.74 1.181 72,00 71,70 12,08 8,00 8,00 65,08 120,00 10,00 97,00 115,00 34,00 KM50 2.835 2.815 0.475 0.315 0.315 2.562 4.724 0.394 3.819 4.528 1.339 85,00 84,60 16,08 9,50 9,50 75,08 140,00 12,00 124,50 145,00 35,35 KM63 3.346 3.327 0.633 0.374 0.374 2.956 5.512 0.472 4.902 5.709 1.392 KM size L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 L15 G 11,50 32,00 32,00 27,50 34,00 24,00 32,00 27,50 70,00 38,00 14.50 M8-1,25x20 KM32 (.79) deep 0.453 1.260 1.260 1.083 1.339 0.945 0.945 1.083 2.756 1.496 0.571 15,00 37,00 39,50 33,00 40,00 26,50 39,50 34,00 84,00 46,00 22.00 M10-1,5x25 KM40 (.98) deep 0.591 1.457 1.555 1.299 1.575 1.043 1.043 1.339 3.307 1.811 0.866 16,50 45,00 46,00 42,00 48,00 34,00 46,00 42,00 102,00 54,00 22.00 M12-1,75x25 KM50 (.98) deep 0.650 1.772 1.811 1.654 1.890 1.339 1.339 1.654 4.016 2.126 0.866 18,80 51,70 55,00 46,00 55,00 42,15 55,00 47,00 117,00 65,00 24.00 M16-2,0x30 KM63 (1.18) deep 0.740 2.035 2.165 1.811 2.165 1.659 1.659 1.850 4.606 2.559 0.945 K42 WWW.WIDIA.COM
