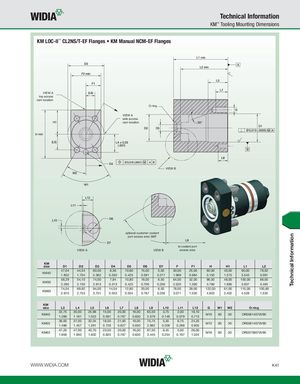

Technical Information ™ KM Tooling Mounting Dimensions KM LOC-II™ CL2NS/T-EF Flanges • KM Manual NCM-EF Flanges VIEW A top access cam location O-ring VIEW A side access cam location VIEW B optional customer coolant Technical Information port access area 360º to coolant port VIEW A VIEW B access area KM size D1 D2 D3 D4 D5 D6 D7 F F1 H H1 L1 L2 47,04 44,54 60,00 6,36 10,80 15,00 5,50 50,00 25,00 80,00 40,00 90,00 78,50 KM40 1.852 1.754 2.362 0.250 0.425 0.591 0.217 1.969 0.984 3.150 1.575 3.543 3.091 58,29 54,10 74,00 7,94 10,80 18,00 6,50 64,00 32,00 96,00 48,00 100,00 88,00 KM50 2.295 2.130 2.913 0.313 0.425 0.709 0.256 2.520 1.260 3.780 1.890 3.937 3.465 74,04 69,92 94,00 14,04 12,80 20,00 6,50 78,00 39,00 122,00 61,00 115,00 100,80 KM63 2.915 2.753 3.701 0.553 0.504 0.787 0.256 3.071 1.535 4.803 2.402 4.528 1.535 KM size L3 L4 L5 L6 L7 L8 L9 L10 L11 L12 G W1 W2 O-ring 32,75 30,00 25,98 15,00 20,00 16,00 65,50 3,75 2,00 18,10 KM40 M10 60 30 OR00614070V90 1.289 1.181 1.023 0.591 0.787 0.630 2.579 0.148 0.079 0.713 38,00 37,00 32,04 18,50 21,00 16,00 75,75 5,30 6,75 24,25 KM50 M12 60 30 OR00614070V90 1.496 1.457 1.261 0.728 0.827 0.630 2.982 0.209 0.266 0.955 47,20 47,00 40,70 23,50 20,00 16,00 87,50 6,45 5,00 26,00 KM63 M16 60 30 OR00739070V90 1.858 1.850 1.602 0.925 0.787 0.630 3.445 0.254 0.197 1.024 WWW.WIDIA.COM K41
