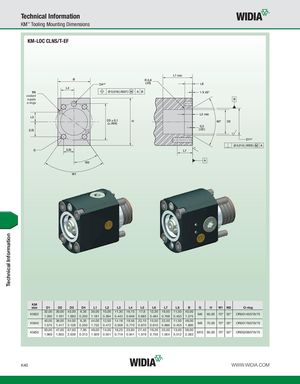

Technical Information KM™ Tooling Mounting Dimensions KM-LOC CLNS/T-EF D5 coolant supply o-rings Technical Information KM size D1 D2 D3 D4 L1 L2 L3 L4 L5 L6 L7 L8 B G H W1 W2 O-ring 32,00 30,00 43,00 6,35 30,00 10,00 11,30 16,15 17,6 12,30 19,50 11,50 40,00 KM32 M6 60,00 70º 35º OR00145070V75 1.260 1.181 1.693 0.250 1.181 0.394 0.445 0.646 0.693 0.484 0.768 0.453 1.575 40,00 36,00 54,00 6,35 44,00 12,00 14,18 19,56 22,10 15,50 22,50 11,50 48,00 KM40 M8 70,00 70º 35º OR00176070V75 1.575 1.417 2.126 0.250 1.732 0.472 0,558 0,770 0.870 0.610 0.886 0.453 1.890 50,00 47,00 67,00 7,95 49,00 14,00 18,25 23,90 27,40 19,20 25,50 13,00 58,00 KM50 M10 85,00 70º 35º OR00208070V75 1.969 1.850 2.638 0.313 1.929 0.551 0.719 0.941 1.079 0.756 1.004 0.512 2.283 K40 WWW.WIDIA.COM
