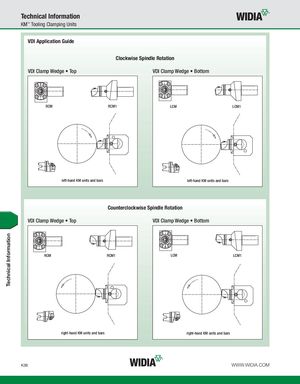

Technical Information KM™ Tooling Clamping Units VDI Application Guide Clockwise Spindle Rotation VDI Clamp Wedge • Top VDI Clamp Wedge • Bottom RCM RCM1 LCM LCM1 left-hand KM units and bars left-hand KM units and bars Counterclockwise Spindle Rotation VDI Clamp Wedge • Top VDI Clamp Wedge • Bottom RCM RCM1 LCM LCM1 right-hand KM units and bars right-hand KM units and bars K36 WWW.WIDIA.COM Technical Information
