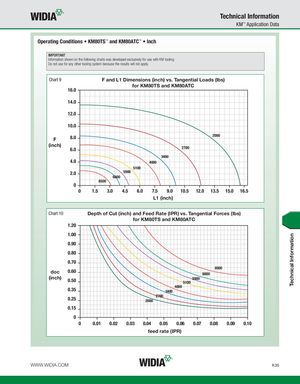

Technical Information KM™ Application Data Operating Conditions • KM80TS™ and KM80ATC™ • Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 9 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM80TS and KM80ATC 16.0 14.0 12.0 10.0 2000 F 8.0 (inch) 2700 6.0 3400 4.0 4000 5100 2.0 5900 6800 8500 0 0 1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 L1 (inch) Chart 10 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM80TS and KM80ATC 1.20 1.00 Technical Information 0.90 0.80 0.70 8500 doc 0.60 6800 (inch) 5900 0.50 5100 4000 0.35 3400 2700 0.25 2000 0.15 0 0 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 feed rate (IPR) WWW.WIDIA.COM K35
