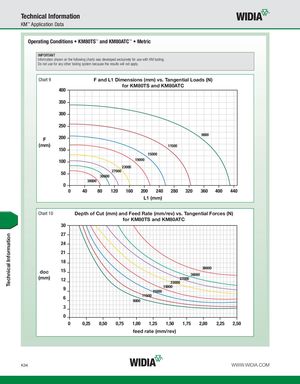

Technical Information KM™ Application Data Operating Conditions • KM80TS™ and KM80ATC™ • Metric IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 9 F and L1 Dimensions (mm) vs. Tangential Loads (N) for KM80TS and KM80ATC 400 350 300 250 9000 F 200 (mm) 11500 150 15000 100 19000 23000 27000 50 30000 38000 0 0 40 80 120 160 200 240 280 320 360 400 440 L1 (mm) Chart 10 Depth of Cut (mm) and Feed Rate (mm/rev) vs. Tangential Forces (N) for KM80TS and KM80ATC 30 27 Technical Information 24 21 18 38000 doc 15 30000 (mm) 12 27000 23000 19000 9 15000 11500 6 9000 3 0 0 0,25 0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,25 2,50 feed rate (mm/rev) K34 WWW.WIDIA.COM
