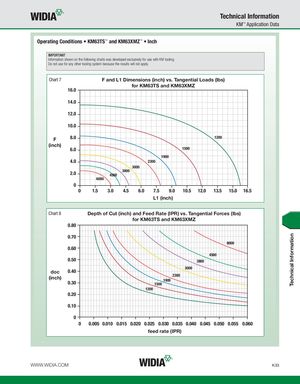

Technical Information KM™ Application Data Operating Conditions • KM63TS™ and KM63XMZ™ • Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 7 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM63TS and KM63XMZ 16.0 14.0 12.0 10.0 F 8.0 1200 (inch) 6.0 1500 1900 4.0 2300 3000 3800 2.0 4500 6000 0 0 1.5 3.0 4.5 6.0 7.5 9.0 10.5 12.0 13.5 15.0 16.5 L1 (inch) Chart 8 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM63TS and KM63XMZ 0.80 Technical Information 0.70 6000 0.60 4500 0.50 3800 3000 doc 0.40 2300 (inch) 1900 0.30 1500 1200 0.20 0.10 0 0 0.005 0.010 0.015 0.020 0.025 0.030 0.035 0.040 0.045 0.050 0.055 0.060 feed rate (IPR) WWW.WIDIA.COM K33
