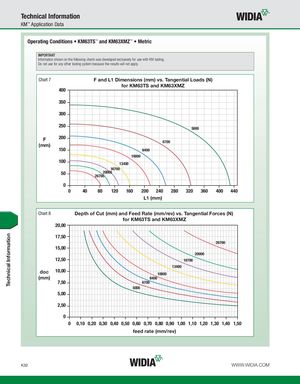

Technical Information KM™ Application Data Operating Conditions • KM63TS™ and KM63XMZ™ • Metric IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 7 F and L1 Dimensions (mm) vs. Tangential Loads (N) for KM63TS and KM63XMZ 400 350 300 250 5000 F 200 6700 (mm) 150 8400 10000 100 13400 16700 50 2000026700 0 0 40 80 120 160 200 240 280 320 360 400 440 L1 (mm) Chart 8 Depth of Cut (mm) and Feed Rate (mm/rev) vs. Tangential Forces (N) for KM63TS and KM63XMZ 20,00 17,50 26700 15,00 20000 12,50 16700 13400 doc 10,00 10000 (mm) 8400 7,50 6700 5000 5,00 2,50 0 0 0,10 0,20 0,30 0,40 0,50 0,60 0,70 0,80 0,90 1,00 1,10 1,20 1,30 1,40 1,50 feed rate (mm/rev) K32 WWW.WIDIA.COM Technical Information
