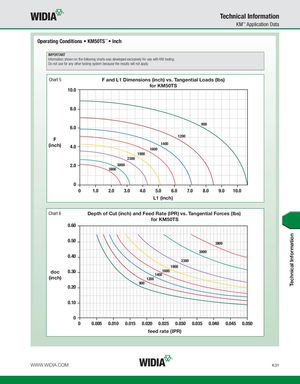

Technical Information KM™ Application Data Operating Conditions • KM50TS™ • Inch IMPORTANT Information shown on the following charts was developed exclusively for use with KM tooling. Do not use for any other tooling system because the results will not apply. Chart 5 F and L1 Dimensions (inch) vs. Tangential Loads (lbs) for KM50TS 10.0 8.0 900 6.0 1200 F (inch) 1400 4.0 1600 1900 2300 2.0 3000 3800 0 0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 L1 (inch) Chart 6 Depth of Cut (inch) and Feed Rate (IPR) vs. Tangential Forces (lbs) for KM50TS 0.60 Technical Information 0.50 3800 3000 0.40 2300 1900 doc 0.30 1600 1400 (inch) 1200 900 0.20 0.10 0 0 0.005 0.010 0.015 0.020 0.025 0.030 0.035 0.040 0.045 0.050 feed rate (IPR) WWW.WIDIA.COM K31
